PostgreSQL RDS monitoring with Datadog

In the previous post of this series on PostgreSQL RDS monitoring, we learned how to access RDS metrics from CloudWatch, and from the PostgreSQL database itself. Because PostgreSQL’s built-in pg_stat_* statistics views provide cumulative counters for many metrics, an automated monitoring tool can help provide more meaningful insights into how your PostgreSQL metrics are evolving over time. It can also help provide more context when troubleshooting, by enabling you to compare and correlate RDS PostgreSQL data with metrics from other services throughout your environment.

In this post, we will show you how to set up Datadog to automatically collect all of the key metrics covered in Part 1 in two steps:

• Access CloudWatch metrics with Datadog’s Amazon RDS integration
• Query metrics directly from the database instance with the PostgreSQL integration

We’ll also show you how to get even more visibility into your RDS database instances (and the applications that rely on them) by:

• setting up RDS enhanced metrics with Datadog
• deploying Datadog’s distributed tracing and APM to monitor an application that relies on RDS PostgreSQL

Collect CloudWatch metrics for PostgreSQL RDS monitoring

Integrating Datadog with AWS CloudWatch enables you to aggregate metrics from all of your AWS services so that you can visualize and alert on them from one central platform. If you’re new to Datadog, you can sign up for a 14-day free trial to follow along with the rest of this guide.

Datadog’s AWS CloudWatch integration requires read-only access to your AWS account. You’ll need to create a role (e.g., DatadogAWS) in the AWS IAM Console, and attach a policy that provides your role with the necessary permissions to access metrics through the CloudWatch API, as explained in the documentation.

Once you’re done creating your AWS role, navigate to the AWS integration tile in Datadog and fill in your AWS account ID and the name of your role in the “Role Delegation” section of the Configuration tab. Make sure to check off “RDS” (and any other AWS services you wish to monitor) under “Limit metric collection.” If you’d like to monitor other AWS services in Datadog, check the documentation to see which additional permissions your role will need.

By default, your CloudWatch RDS metrics will automatically be tagged in Datadog with metadata about each database instance, including:

• dbinstanceidentifier: name of the database instance (determined in the initial setup process, and accessible in the Amazon RDS console)
• dbinstanceclass: instance class of the database instance
• dbname: name of the database
• engine: name of the database engine running on the instance
• engineversion: version of the database engine this instance is using
• region: AWS region where your instance is located

These tags will be structured in key:value format. For example, all of your RDS PostgreSQL metrics will be tagged with engine:postgres. Tags give you the power to slice and dice your metrics by any dimension. For example, you can filter your RDS dashboard to view metrics from database instances located in a specific region, or limit your view to metrics from just one database instance at a time. Datadog will also ingest any custom CloudWatch tags you may have added to your RDS database instances.

Beyond RDS: Querying metrics directly from PostgreSQL

As mentioned in Part 1, a comprehensive approach to PostgreSQL RDS monitoring will require you to collect PostgreSQL metrics that are not available in CloudWatch. These metrics will need to be accessed directly from the database itself. With Datadog’s PostgreSQL integration, you can automatically query key PostgreSQL data from each RDS instance and visualize and alert on those metrics in one central platform.

Installing the Datadog Agent on your EC2 instance

The Datadog Agent is open source software that integrates with PostgreSQL and more than 800 other technologies. You cannot deploy the Datadog Agent directly on your PostgreSQL instance, since Amazon RDS does not provide direct access to your database instance’s host. Instead, you’ll need to install the Agent on another server that can access your database, such as an EC2 instance in the same security group as your RDS instance. Consult the documentation for OS-specific installation steps.

Once you have installed the Agent on your server, and set up the server to connect to your PostgreSQL database on RDS (consult Part 2 for instructions), you are ready to configure the Agent to forward PostgreSQL metrics to Datadog.

Connecting the Agent to PostgreSQL

In order to configure the Agent to query and forward PostgreSQL database metrics to Datadog, you’ll need to initialize a psql session from your EC2 instance and create a user that the Datadog Agent can use to query metrics.

Start a psql session as a user that has CREATEROLE privileges; see Part 2 for more details. Once you’ve connected, create a datadog user:

create user datadog with password '<PASSWORD>';

For security reasons, PostgreSQL restricts certain track_activities statistics to superusers (including information about the queries that other users are currently executing, available via the pg_stat_activity view). If you’re running PostgreSQL version 10.x+, and you would like to give your datadog user access to monitoring-related statistics and configuration settings that are normally reserved for superusers, you can grant it pg_monitor permissions:

grant pg_monitor to datadog;

Exit the psql session and run this command from your EC2 instance to confirm that the datadog user can access your metrics:

psql -h <DB_INSTANCE_ENDPOINT> -U datadog postgres -c \ "select * from pg_stat_database LIMIT(1);" && echo -e "\e[0;32mPostgres connection - OK\e[0m" || \ || echo -e "\e[0;31mCannot connect to Postgres\e[0m"

You’ll be prompted to enter the password for your datadog user. After you’ve done so, you should see the following output: Postgres connection - OK.

Configure the Agent to collect PostgreSQL metrics

Now it’s time to create a configuration file that tells the Agent how to access PostgreSQL metrics from RDS. The Agent comes bundled with an example configuration file for PostgreSQL that you can modify to your liking. The location of this file varies according to your OS and platform—consult the documentation for details on where to locate the file.

Create a copy of the example configuration file and edit it with the information that the Datadog Agent needs to access metrics from your RDS instance. The example below instructs the Agent to access an RDS database instance through the default port (5432), using the datadog user and password we just created. You can also add custom tag(s) to your PostgreSQL metrics, and limit metric collection to specific schemas, if desired. We recommend adding a dbinstanceidentifier:<DB_INSTANCE_IDENTIFIER> tag to unify your RDS and PostgreSQL metrics. If you wish to collect and track table-level metrics (such as the amount of disk space used per table), add each table to the relations section of the YAML file.

init_config:

instances:
  - host: <DB_INSTANCE_ENDPOINT>
    port: 5432
    username: datadog
    password: <PASSWORD>
    dbname: <DATABASE_NAME>
    tags:
      - dbinstanceidentifier:<DB_INSTANCE_IDENTIFIER>
    relations:
      - <TABLE_YOU_WANT_TO_MONITOR>

Save your changes as conf.yaml, restart the Agent, and run the status command to verify that it is collecting PostgreSQL metrics from your RDS database instance. These commands vary according to your OS; consult the documentation to find instructions for your platform.

If everything is configured correctly, you should see a section like this in the output:

    postgres
    --------
      Total Runs: 2
      Metrics: 81, Total Metrics: 162
      Events: 0, Total Events: 0
      Service Checks: 1, Total Service Checks: 2

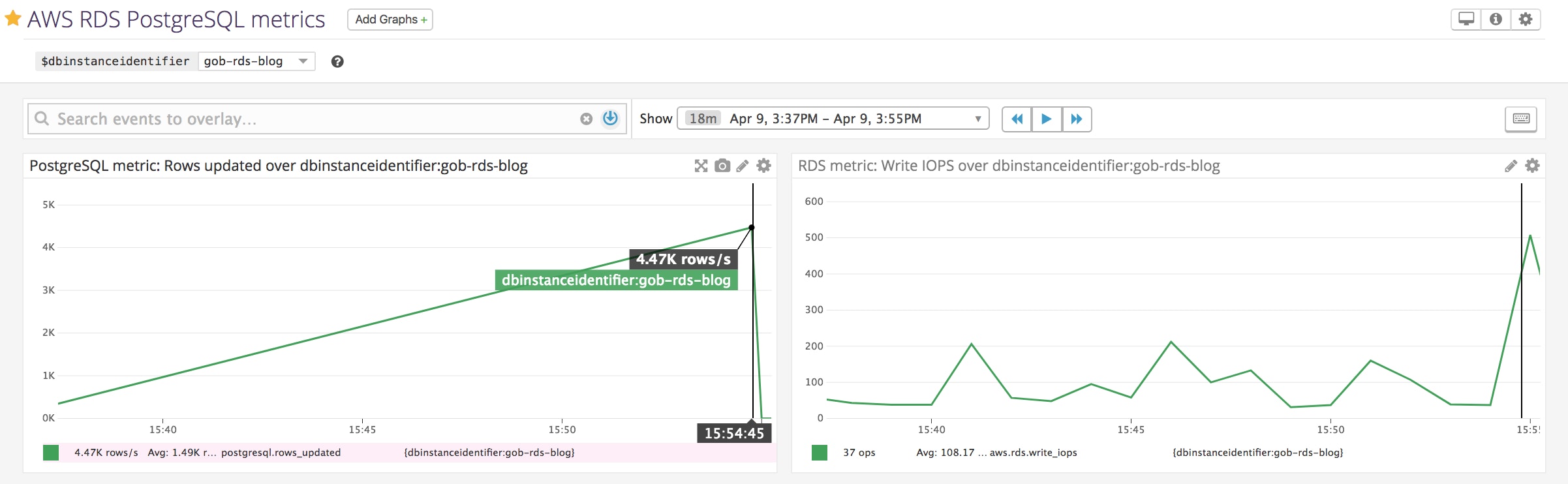

If you added the custom tag to your Datadog Agent’s PostgreSQL configuration file as shown in the example above, your PostgreSQL metrics should be tagged with the name of your RDS instance (dbinstanceidentifier:<NAME_OF_YOUR_INSTANCE>). This enables you to unify metrics from the same database instance, whether they were collected from CloudWatch or directly from PostgreSQL. For example, the dashboard below enables use to compare a PostgreSQL metric (rows updated) side-by-side with a CloudWatch metric (write I/O operations per second) collected from a specific RDS database instance.

Collecting custom PostgreSQL metrics with Datadog

You can also use Datadog’s PostgreSQL integration to collect custom metrics that map to specific SQL queries. In the custom_queries section of the Datadog Agent’s example PostgreSQL configuration file, you’ll see some guidelines about the components you’ll need to provide:

• metric_prefix (required): the prefix to use across every custom metric name (by default, this is postgresql)
• query (required): the SQL query to run on your database
• columns (required): an ordered list of every column returned by the query above. Each item in the list should have a name (the custom metric name that will get appended to the metric_prefix) and a type. The type can be the metric type (gauge, count, rate, etc.), or submission method for the queried metric. Alternatively, you can set the type to tag to tag the metric with the data contained in this column.
• tags (optional): add this if you’d like to tag your custom metrics with additional metadata

For example, you can send a custom query to the pg_stat_activity view to continuously gauge the number of applications connected to each of your backends, broken down by application name and user. Normally you’d query the view with something like:

SELECT
    application_name, usename, COUNT(*) FROM pg_stat_activity
WHERE
    application_name NOT LIKE 'psql' AND (application_name <> '') IS TRUE
GROUP BY
    application_name, usename;

You can set up the Agent to automatically query this data for you on a regular basis, and report the results as a custom metric in Datadog.

Add your query to the custom_queries section of the Datadog Agent’s PostgreSQL configuration file:

[ ... ]
    custom_queries:
      - metric_prefix: postgresql
        query: SELECT application_name, usename, COUNT(*) FROM pg_stat_activity WHERE application_name NOT LIKE 'psql' AND (application_name <> '') IS TRUE GROUP BY application_name, usename
        columns:
        - name: application_name
          type: tag
        - name: pg_user
          type: tag
        - name: count_by_applications
          type: gauge
        # additional optional tags
        tags:
          - <TAG_KEY>:<TAG_VALUE>

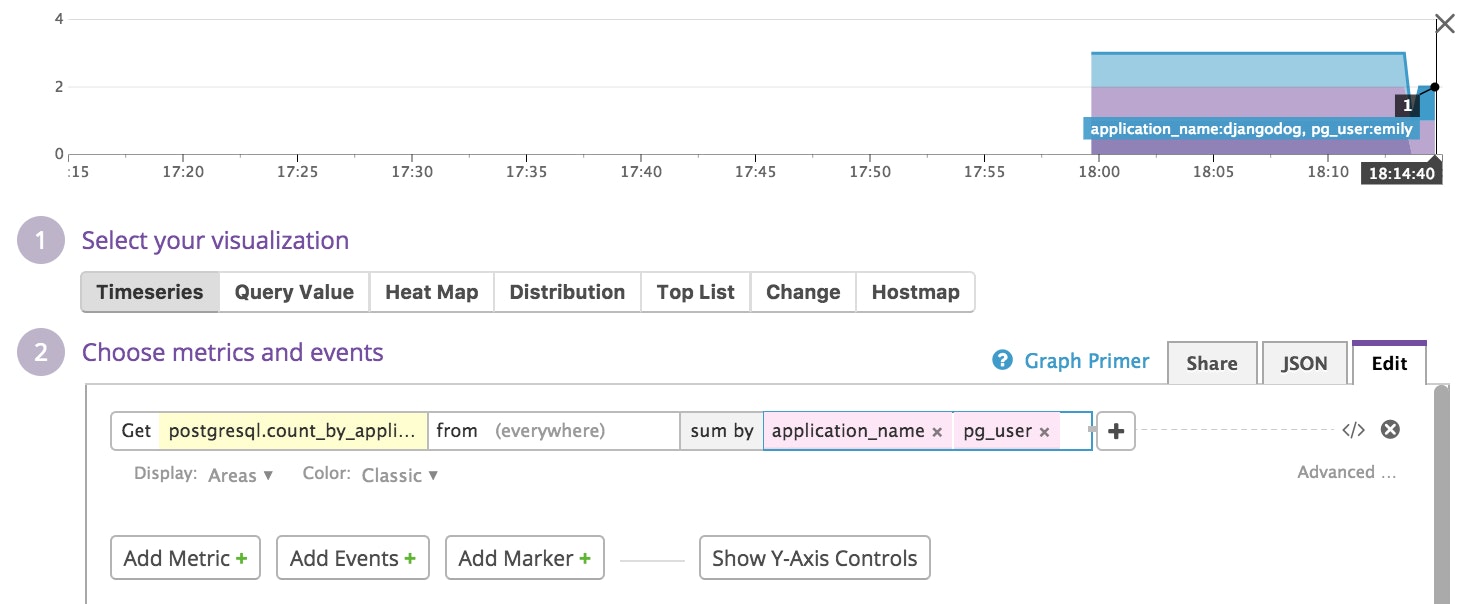

Save and exit the file, and restart the Datadog Agent (find the command for your OS here). We should now be able to see our custom postgresql.count_by_applications metric in Datadog, tagged with the application_name and pg_user.

Consult the documentation and this article to see other examples of useful custom metrics you can collect from your RDS database instance.

PostgreSQL RDS monitoring: Customize your dashboard

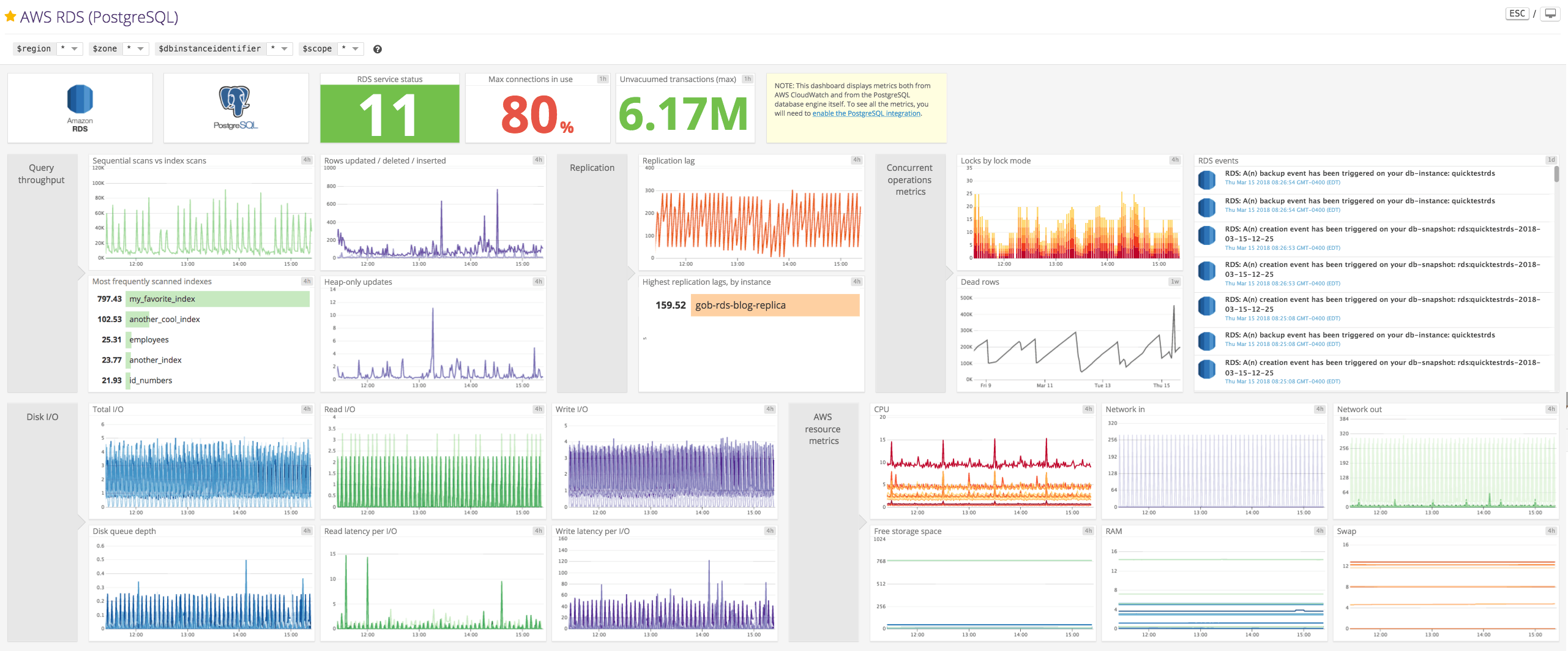

Now that you’ve set up Datadog to integrate with Amazon RDS and PostgreSQL, you’ll have access to an out-of-the-box screenboard that shows key metrics and events from your RDS PostgreSQL database instances.

Since the Datadog Agent also integrates with 800+ other technologies—including AWS services like EBS, ELB, and S3—you can clone and customize this dashboard to correlate metrics across all of those services in one place. You can also use the template variables at the top of the dashboard to filter metrics by a specific region, availability zone, or database instance. Remember that all of your RDS metrics will automatically be tagged with metadata about each instance, including its AWS region and dbinstanceidentifier (the name of your instance). You can also use the scope variable to filter RDS metrics using any other tag that can help you get more fine-grained insights into database performance.

Enhanced RDS metrics in Datadog

As explained in Part 1 of this series, Amazon RDS users have the option to enable enhanced monitoring for their PostgreSQL instances at an additional cost (note that this is not available for db.m1.small instances). Enhanced monitoring provides access to more than 50 detailed system metrics about your database instances’ workload—including process-level memory and CPU usage—at a higher resolution than basic CloudWatch monitoring. Because enhanced monitoring metrics are gathered by an agent running directly on each instance, while CloudWatch metrics are gathered by the hypervisor for the instance, enhanced monitoring metrics provide deeper visibility into the actual work being performed.

If you choose to enable enhanced monitoring on your RDS instances, you can set up Datadog’s integration to help you automatically visualize and alert on your RDS enhanced monitoring metrics. See our documentation for step-by-step instructions.

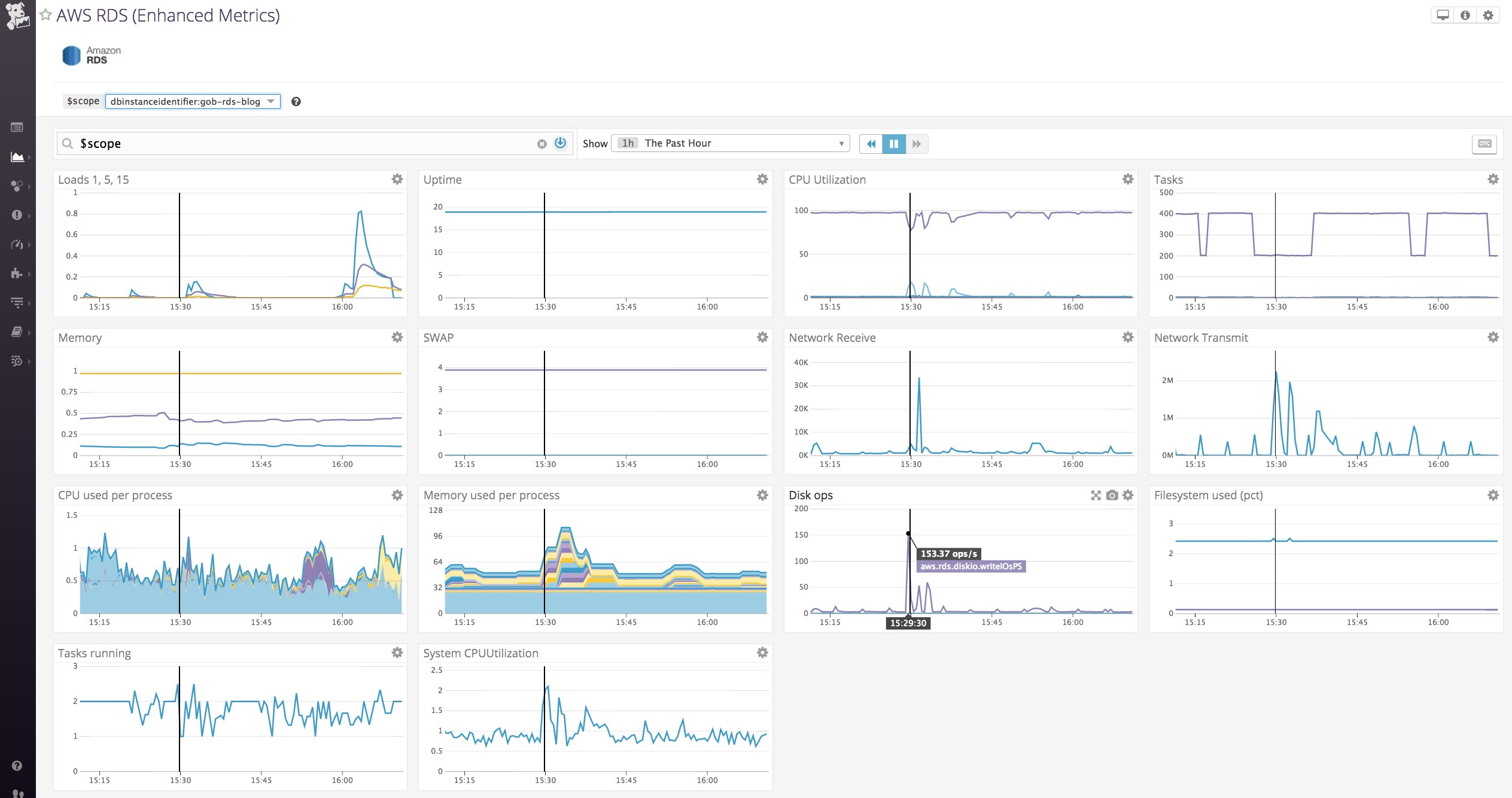

Once you enable the integration, you’ll have access to a pre-built RDS Enhanced Monitoring dashboard, which you can clone, customize, and share with your team.

Tracing PostgreSQL RDS requests in Datadog

So far, we’ve set up PostgreSQL RDS monitoring in Datadog by collecting metrics from our database instances via integrations with CloudWatch and PostgreSQL. Now we can get visibility into the actual applications or services that need to access data from RDS by setting up distributed tracing and APM. If you’re using Datadog to monitor key metrics from your RDS PostgreSQL instances, correlating and comparing these metrics to application-level performance can help you dig deeper and investigate the source of increased latency or errors—is it an issue with your code, or a problem with the underlying infrastructure?

APM is packaged in the same lightweight, open source Datadog Agent that we already deployed on our EC2 instance, so we won’t need to install anything else in order to trace requests to our application. Datadog’s distributed tracing and APM can auto-instrument popular frameworks and libraries in a growing number of languages. For example, the open source Python tracing client includes out-of-the-box support for frameworks like Django, and databases and caches like PostgreSQL and Redis.

In the following example, we’ll show you how to set up the Agent to monitor key service-level metrics and trace requests to a Django application that is hosted on our AWS EC2 instance. The application reads and writes requests to an RDS PostgreSQL database instance, and uses a Redis caching layer to speed up queries.

1. Install the Agent + Python tracing client

Normally, we would install the Datadog Agent on our Django app server. However, in this example, we can skip this step because the application is hosted on the same EC2 instance that we used to configure Datadog’s PostgreSQL integration. Follow the instructions here if you need to install the Datadog Agent on a different server. Either way, make sure that your application server is able to connect to PostgreSQL on your RDS instance (see Part 2 for more details).

Now we need to install the Python tracing client in our environment:

pip install ddtrace

2. Update your Django settings.py file

Add the ddtrace library to the INSTALLED_APPS portion of the Django settings.py file:

INSTALLED_APPS = [
[...]
    'ddtrace.contrib.django',
]

Add a DATADOG_TRACE section, making sure to specify the name of your service, along with any custom tags to add to your service-level metrics :

DATADOG_TRACE = {
    'DEFAULT_SERVICE': '<MY_SERVICE>',
    'TAGS': {'env': 'myenv'},
}

Finally, if you haven’t done so already, revise the DATABASES section to query the RDS instance:

DATABASES = {
    'default': {
        'ENGINE': 'django.db.backends.postgresql',
        'NAME': '<DATABASE_NAME>',
        'USER': os.environ['DATABASE_USER'],
        'PASSWORD': os.environ['DATABASE_PASSWORD'],
        'HOST': '<RDS_DATABASE_ENDPOINT>',
        'PORT': '5432',
    }
}

<DB_INSTANCE_ENDPOINT> is the RDS instance endpoint your application needs to query (e.g., my-db-instance.xxxxx.us-east-1.rds.amazonaws.com).

Note that DEBUG mode needs to disabled in order for Datadog to trace your application. Save and exit the file.

3. It’s ddtrace-run time

To collect request traces and service-level metrics from our application and forward to Datadog, we simply need to wrap the usual command with ddtrace-run when firing up our app server:

ddtrace-run python manage.py runserver

Tracing queries to RDS PostgreSQL

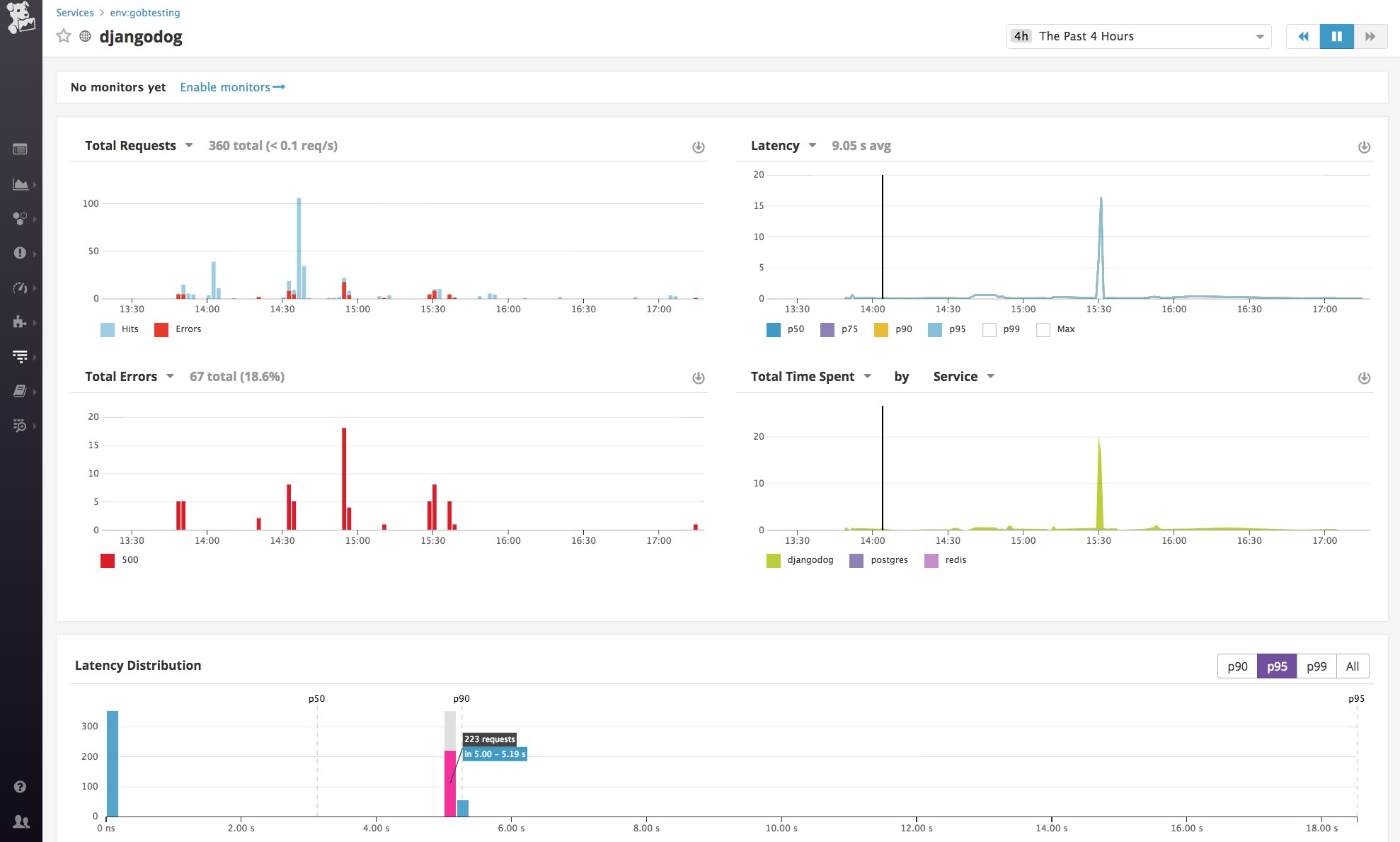

Without instrumenting our code at all, the Datadog Agent will automatically start tracing requests to our application, including calls to the database, because it integrates with PostgreSQL out of the box. Navigate to the APM Services page in Datadog and click on the name of your application to view a dashboard of key service-level indicators like latency, throughput, and errors.

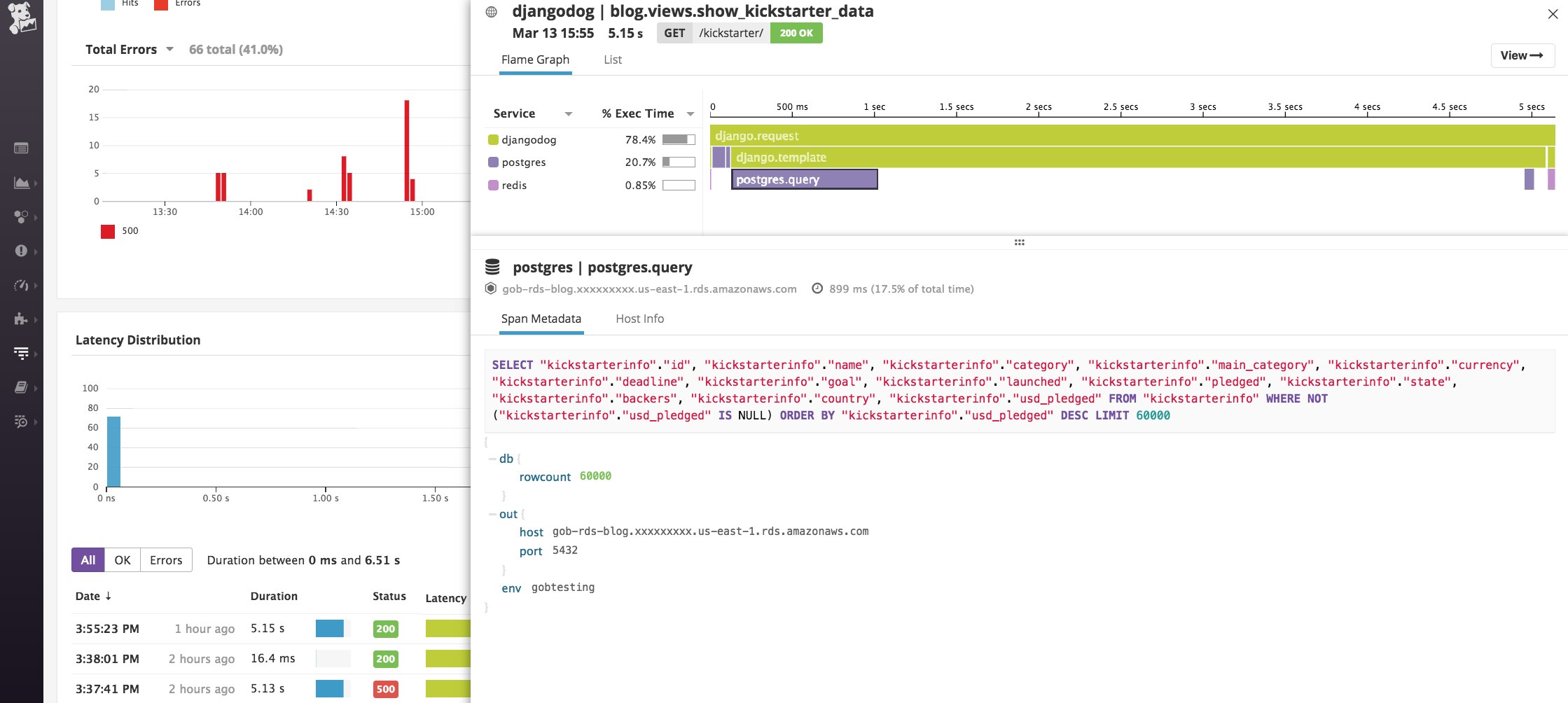

On the App Analytics page, you can inspect individual request traces in detailed flame graphs that show the amount of time spent accessing various services throughout our environment. In the request below, we can see that the application is making several calls to the RDS database, and that it spends a small amount of time in Redis. We can dig deeper by clicking on any individual span to view more information, such as the exact SQL query that was executed.

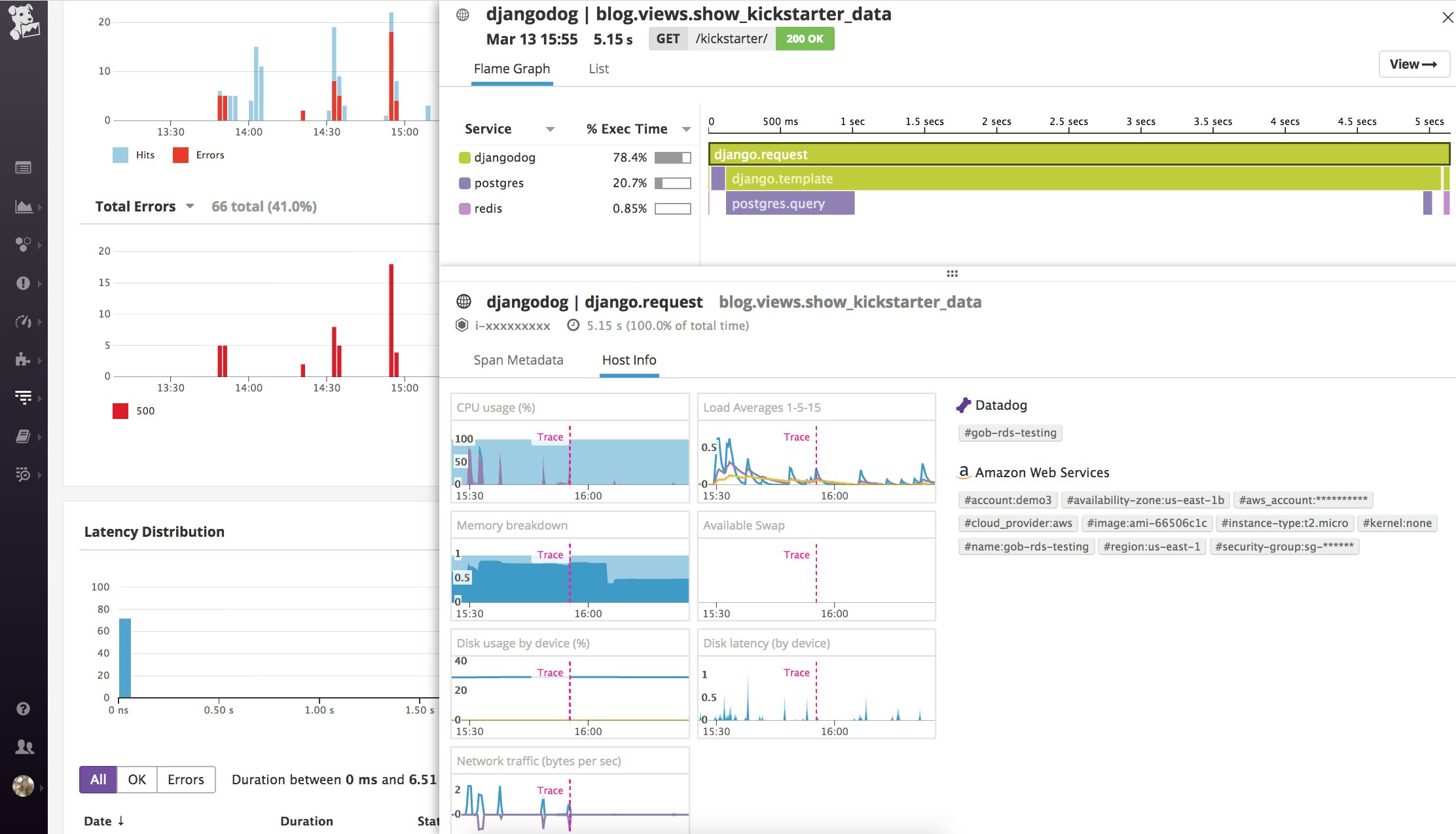

The Span Metadata panel displays the number of rows accessed by this query, as well as the RDS host that was queried. When you click on any particular span of a request trace, the Host Info panel provides additional details about the host where this work was executed—in this case, the EC2 instance that is hosting our Django app. We can see the host tags that were inherited from AWS, as well as any custom tags added in the Datadog Agent configuration file. The time of the request trace has also been overlaid across graphs of host-level metrics like CPU, network, and memory.

Seeing the big picture

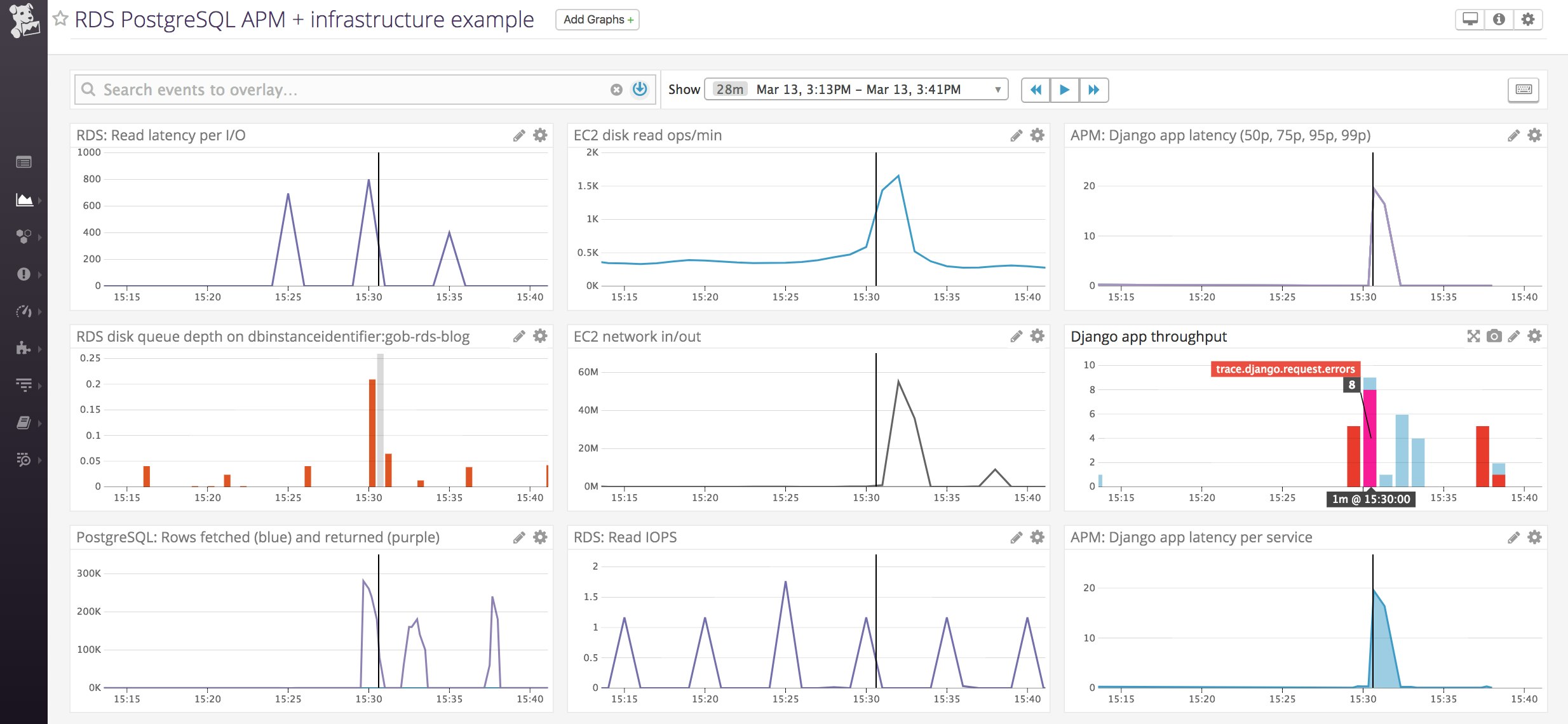

Now that we’re monitoring our systems, applications, and services in the same platform, we can create custom dashboards that combine key metrics from all of these sources and consult them whenever we need to troubleshoot or investigate an issue. In the dashboard below, we combined data from EC2, RDS, PostgreSQL, and our Django application to get comprehensive visibility into our deployment in a single pane of glass.

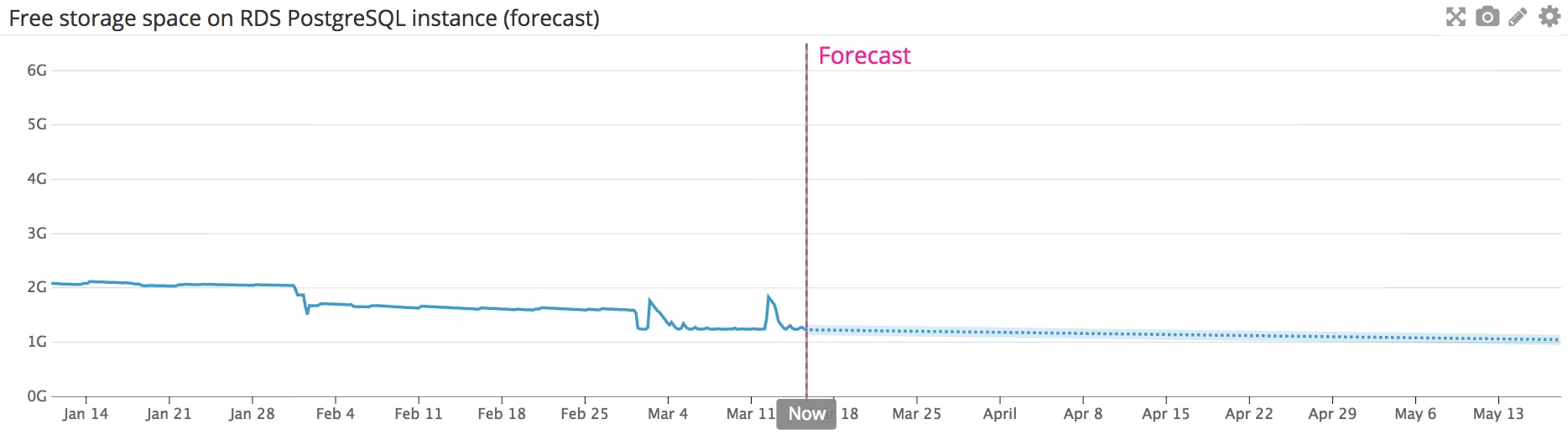

You can also set up alerts to automatically get notified about potential issues in RDS PostgreSQL, such as high replication lag. With forecasting, you can set up Datadog to automatically notify you a week before any RDS database instance is predicted to run out of storage space, giving you enough time to allocate more storage to an instance if needed.

You can also add forecasts and other machine learning–powered features like anomaly detection to your dashboards in order to help you identify potential issues before they impact your users.

Dive into PostgreSQL RDS monitoring with Datadog

If you’ve followed along with this guide, you should now have access to comprehensive PostgreSQL RDS monitoring, which will help you get a handle on database performance as you scale your deployment over time. If you’re new to Datadog, you can sign up for a 14-day free trial to start monitoring PostgreSQL on RDS along with all of your other applications and services.

Source Markdown for this post is available on GitHub. Questions, corrections, additions, etc.? Please let us know.
